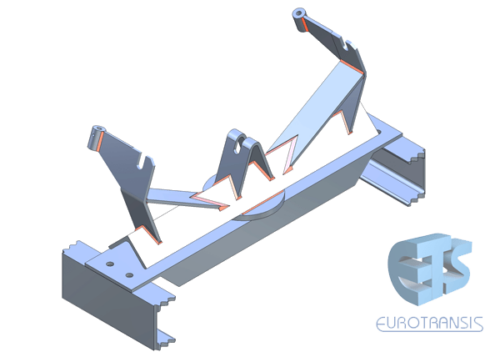

Self-aligning upper V-shaped frames
Description
Eurotransis upper autocentrantes stations in V to the load side bands between 400 and 500 mm wide. It is supplied with side guide rollers without load rollers, which are usually smooth and can be mounted at 10 or 20 degrees. The carrier element can be LPN or UPN.
Eurotransis upper autocentrantes stations in V to the load side bands between 650 and 1000 mm wide. It is supplied with side guide rollers without load rollers, which are usually smooth and can be mounted to 20 or 30 degrees. The carrier element can be LPN or UPN.
Eurotransis upper autocentrantes stations in V to the load side band between 1,200 and 2,000 mm wide. It is supplied with side guide rollers without load rollers, which are usually smooth and can be mounted to 20 or 30 degrees. The carrier element can be LPN or UPN.

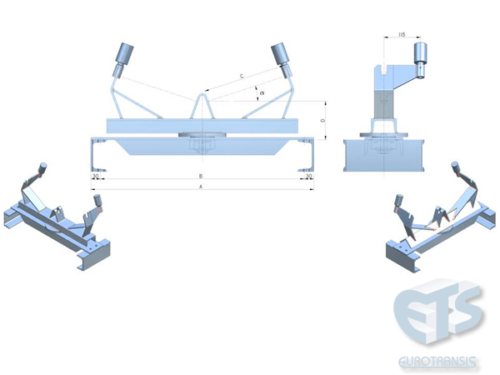

SELF-ALIGNING UPPER V-SHAPED FRAMES |
||||||||
BELT WIDTH | PROFILE | Ø ROLLER | α | A | B | C | D |
WEIGHT (Kg) |
400 | L70 ó UPN80 |
63.5 89 |
20º 30º |
700 | 640 | 260 |
125 135 |
17.4 18.9 |
500 | L70 ó UPN80 |
63.5 89 |
20º 30º |
800 | 740 | 325 |
125 135 |
20.6 21.8 |
650 | L70 ó UPN100 |
89 108 |
20º 30º |
950 | 890 | 390 |
135 150 |
27.1 28.3 |
800 | L70 ó UPN100 |
89 108 133 |
20º 30º |
1150 | 1090 | 475 |
135 150 155 |
31.1 32.1 |
1000 | L80 ó UPN100 |
89 108 133 |
20º 30º |
1350 | 1290 | 610 |
135 150 155 |
35 36.3 |
1200 | L80 ó UPN120 |
108 133 159 |
20º 30º |
1600 | 1540 | 710 |
135 155 185 |
52.5 55.5 |
1400 | L80 ó UPN120 |
108 133 159 |
20º 30º |
1800 | 1740 | 810 |
130 155 185 |
56 60 |
1600 | L80 ó UPN120 |
133 159 |
20º 30º |
2050 | 1990 | 910 |
155 185 |
62.3 66.4 |
1800 | L80 ó UPN120 |
133 159 |
20º 30º |
2250 | 2190 | 1010 |
155 185 |
68.3 71.5 |
2000 | L80 ó UPN120 |
159 193.7 |
20º 30º |
2500 | 2440 | 1100 |
185 215 |
76.1 81.6 |
TURNING SYSTEM CONICAL ROLLER BEARING AND GREASE FITTING |
NOTES DIMENSIONS IN mm WEIGHT WITHOUT ROLLERS. MAX. AND MIN. VALUES ARE APPROXIMATE AMONG ALL THE POSSIBLE COMBINATIONS BETWEEN THE ANGLES AND ROLLERS |
