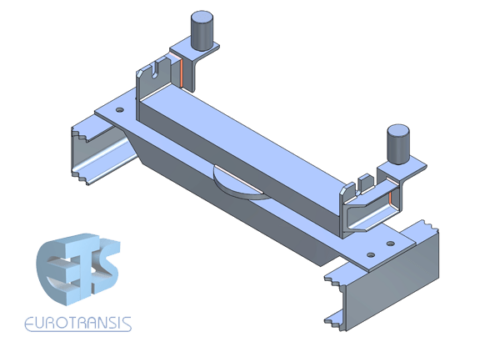

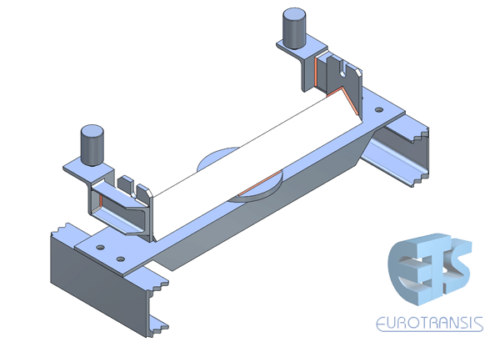

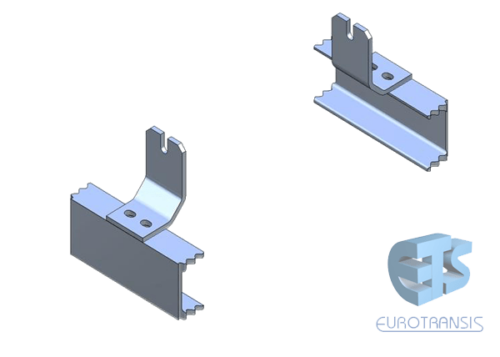

| SELF ALIGNING UPPER FLAT FRAMES | ||||||||

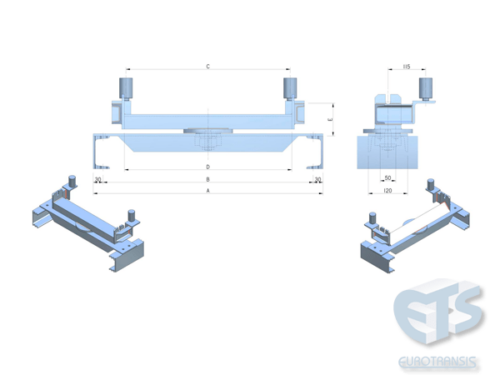

| BELT WIDTH | PROFILE | Ø ROLLER | A | B | C | D | E |
WEIGHT (Kg) |
| 400 | L70 ó UPN80 |
63.5 89 |
700 | 640 | 500 | 510 |
107 120 |
17.8 19.3 |
| 500 | L70 ó UPN80 |
63.5 89 |
800 | 740 | 600 | 610 |
107 120 |
21 22.2 |
| 650 | L70 ó UPN100 |
89 108 |
950 | 890 | 750 | 760 |
125 135 |
27.5 28.7 |
| 800 | L70 ó UPN100 |
89 108 133 |
1150 | 1090 | 900 | 960 |
125 135 150 |
31.5 32.5 |
| 1000 | L80 ó UPN100 |
89 108 133 |
1350 | 1290 | 1100 | 1160 |
125 135 150 |
35.4 36.7 |
| 1200 | L100 ó UPN120 |
108 133 159 |
1600 | 1540 | 1300 | 1410 |
140 155 185 |
52.9 55.9 |
| 1400 | L100 ó UPN120 |
108 133 159 |
1800 | 1740 | 1500 | 1610 |
140 155 185 |
56.4 60.4 |
| 1600 | L100 ó UPN120 |
133 159 |
2050 | 1990 | 1700 | 1810 |
155 185 |
62.7 66.8 |
| 1800 | L100 ó UPN120 |
133 159 |
2250 | 2190 | 1900 | 2010 |
155 185 |
68.7 71.9 |
| 2000 | L100 ó UPN120 |
159 193.7 |
2500 | 2440 | 2100 | 2210 |
165 185 215 |
76.5 82 |
|
TURNING SYSTEM CONICAL ROLLER BEARINGS AND GREASE FITTING |
NOTES COTES IN mm WEIGHT WITHOUT ROLLERS MAX. AND MIN. VALUES ARE APPROXIMATE AMONG THE POSSIBLE COMBINATIONS BETWEEN ANGLES AND ROLLERS |
|||||||
