Description

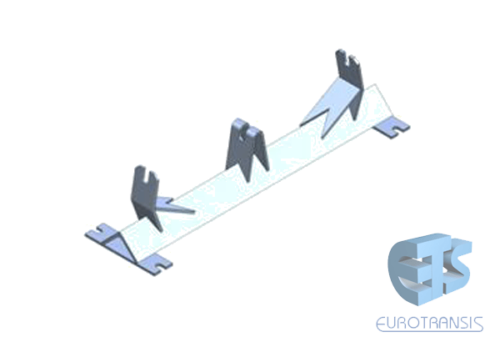

Upper V-Shaped Frames.
UPPER V-SHAPED FRAMES | LOAD (Kg) | |||||||||||||

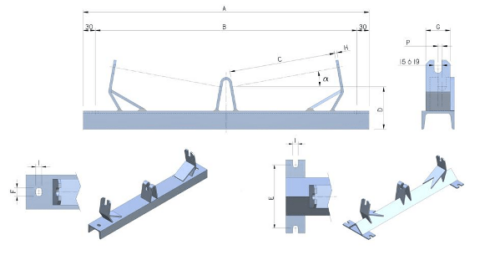

BELT WIDTH | PROFILE | Ø ROLLER | α | A | B | C | D | E | F | G | H | I | UPN | L |
400 | L70 ó UPN80 |
63.5 89 |
10º 20º |
700 | 640 | 260 |
107 120 |
170 | 20 | 60 | 6 | 14 |
7.8 8.4 |
6.9 7.5 |
500 | L70 ó UPN80 |
63.5 89 |
10º 20º |
800 | 740 | 325 |
107 120 |
170 | 20 | 60 | 6 | 14 |
8.8 9.5 |
7.8 8.5 |
650 | L70 ó UPN80 |
63.5 89 |
10º 20º |
950 | 890 | 390 |
112 125 |
170 | 20 | 60 | 6 | 14 |
10.3 11.2 |
9.1 10 |
800 | L70 ó UPN80 |
89 108 |
10º 20º |
1150 | 1090 | 475 |
120 125 |
170 | 20 | 60 | 6 | 14 |
13.2 14.2 |
11.6 12.7 |
1000 | L80 ó UPN100 |
89 108 133 |
10º 15º 20º |
1350 | 1290 | 610 |
125 135 150 |
180 | 24 | 60 | 8 | 18 |
17.8 19.4 |
16.5 18 |
1200 | L80 ó UPN100 |
108 133 159 |
10º 15º 20º |
1600 | 1540 | 710 |
140 155 185 |
180 | 24 | 60 | 8 | 18 |
21.2 23 |
19.7 21.5 |
1400 | L80 ó UPN100 |
108 133 159 |
10º 15º 20º |
1800 | 1740 | 810 |
140 155 185 |
200 | 24 | 80 | 8 | 18 |
24.8 27.3 |
23.1 25.5 |
1600 | L100 ó UPN120 |
133 159 193.7 |
10º 15º 20º |
2050 | 1990 | 910 |
155 185 215 |
200 | 24 | 80 | 8 | 18 |
33.5 36.3 |
36.8 39.6 |
1800 | L100 ó UPN120 |
133 159 193.7 |
10º 15º 20º |
2250 | 2190 | 1010 |
155 185 215 |
220 | 24 | 80 | 8 | 18 |
36.5 39.3 |
40.1 43.1 |
2000 | L100 ó UPN120 |
133 159 193.7 |
10º 15º 20º |
2500 | 2440 | 1110 |
160 190 220 |
220 | 24 | 80 | 8 | 18 |
40.4 44.6 |
44.4 48.6 |
P VALUES (PINCHING) 0 – RUNNING IN BOTH DIRECTIONS 8 – 400 mm TO 650 mm BELTS 10 – 800 mm TO 2000 mm BELTS |
NOTES DIMENSIONS IN mm WEIGHT WITHOUT ROLLERS. MAX. AND MIN. VALUES ARE APPROXIMATE AMONG ALL THE POSSIBLE COMBINATIONS BETWEEN ANGLES AND ROLLERS
|
